PWB Portable Power Station is a universal Battery Energy Storage system ideally suited to a range of applications, delivering reliable power in the most cost effective and environmentally sensitive way. Energy stored within the unit is converted electronically into AC power. Power can be stored from connection to the grid, from a generator or solar PV to ensure the most efficient, lowest maintenance and best environmental impact is achieved. Real time monitoring is provided by on board display to ensure an efficient usage.
FEATURES:
- Li-Ion LFP battery module
- Wireless Charger
- Solar Charging
- Fast Charging integrated 1h 80%
- Parallel Connector
- EPS Emergency power supply
Output specifications
- Output power (Continuous): watt 1200
- Output power peak (1.5s): watt 2400
- Frequency: Hz 50
- Voltage: V 230
- Phase (s): 1
Battery specifications
- Battery (Type): Li-Ion LFP
- Battery rated Voltage: VDC 25.6
- Battery design life @80% DoD: cycles 2000
- Battery Nominal capacity (sizes): W/h 1075
Input specifications
- Max single-phase input: W 800
- a) Charging Times @80%: h 1
- b) Charging Times @100%: h 2

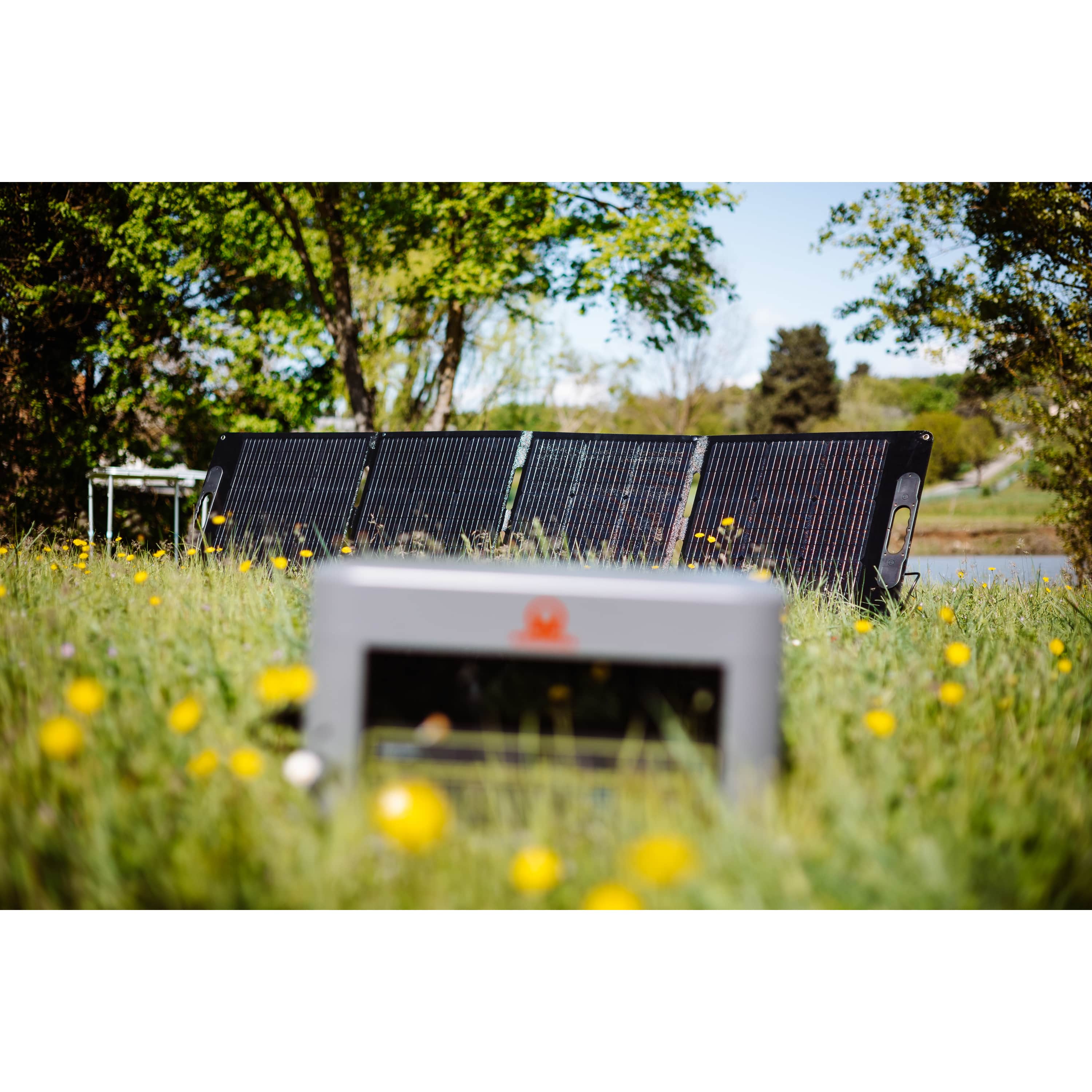

- Max DC Solar Charging: W 400
- a) DC/Solar Charging Times @80% (with 400W of solar panels and best solar lighting condition): h 2.1
- b) DC/Solar Charging Times @80% (with 200W of solar panels and best solar lighting condition): h 4
- Car lighter charging (12V DC): A 8
- Car lighter charging time @80%: h 11
Installation data
- Length: (L) mm 376
- Width: (W) mm 215
- Height: (H) mm 262
- Weight: kg 16
- Discharging temperature range: °C -10...40
- Charging temperature range: °C 0...40
- Carton box dimension LxWxH: mm 455x295x365
- Total weight (carton box included): kg 18
Instruments, controls & connections
- Inverter protection Short Circuit: Yes
- Inverter protection Overload: Yes
- Inverter protection Over Temperature: Yes
- Inverter protection Low Battery: Yes
- System status control panel: Yes
- Battery condition: Yes
- Solar charge controller MPPT: Yes
- Parallel connector: Yes
Output:
- 230V BS1363 (13A) IP44: 2
- Car socket (DC 12V/10A): 1
- DC 6514 (12V/5A): 2
- USB-A 12 W Max (5V/2.4A): 2
- USB-A Quick 24W Max (5/9/12V | 3/2.2/2 A): 2
- USB-C 100 W Max (5/9/12/15/20V | 3/5A): 2
- Wireless charger: 1
