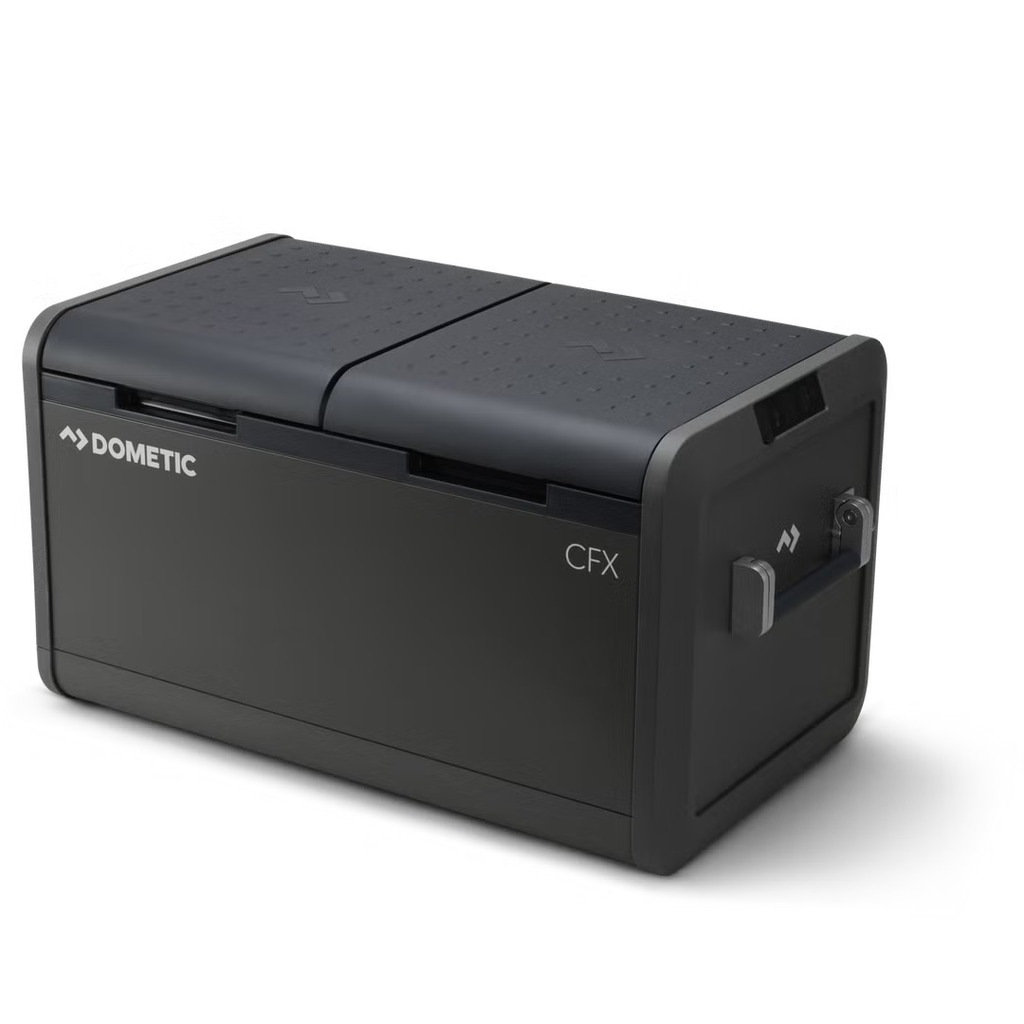

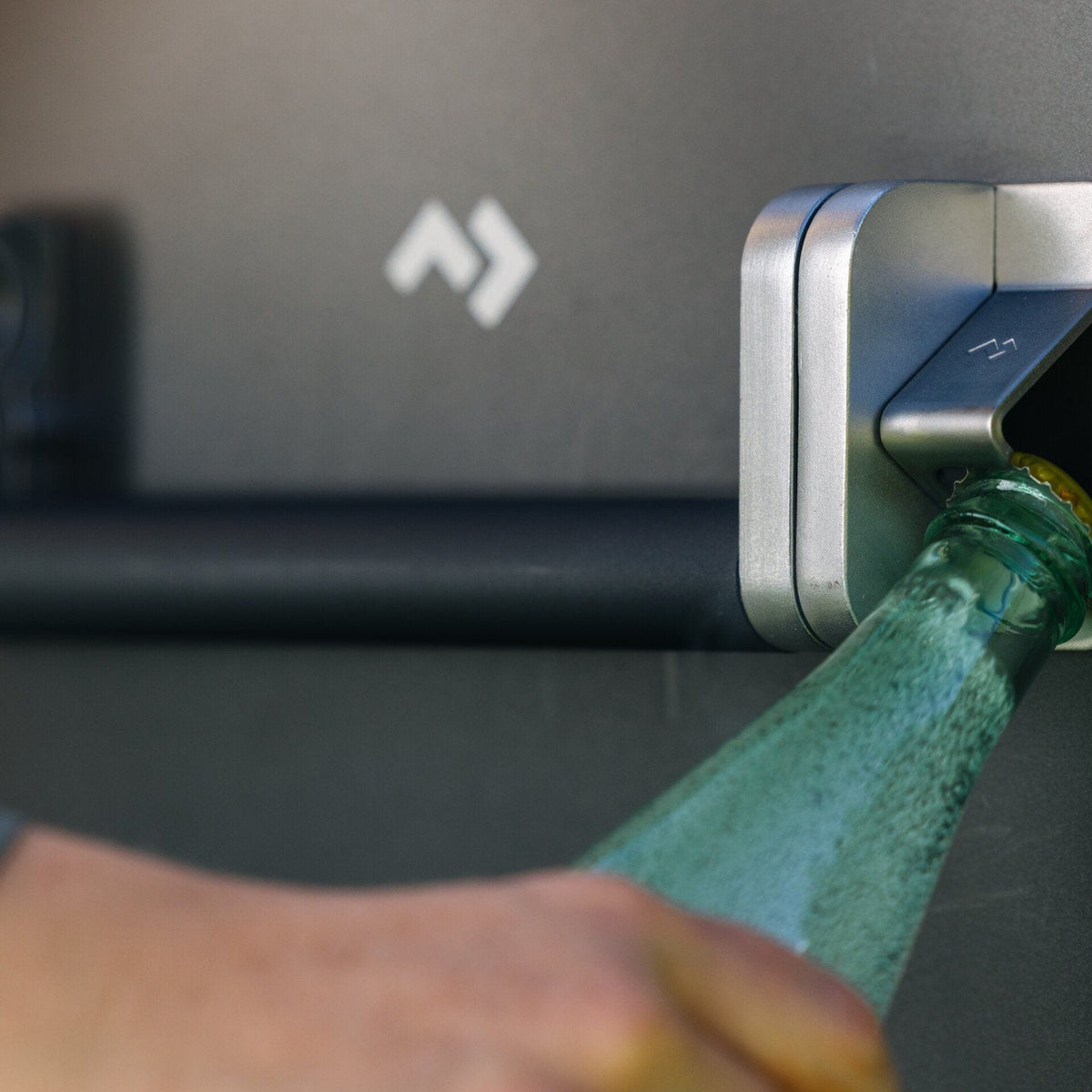

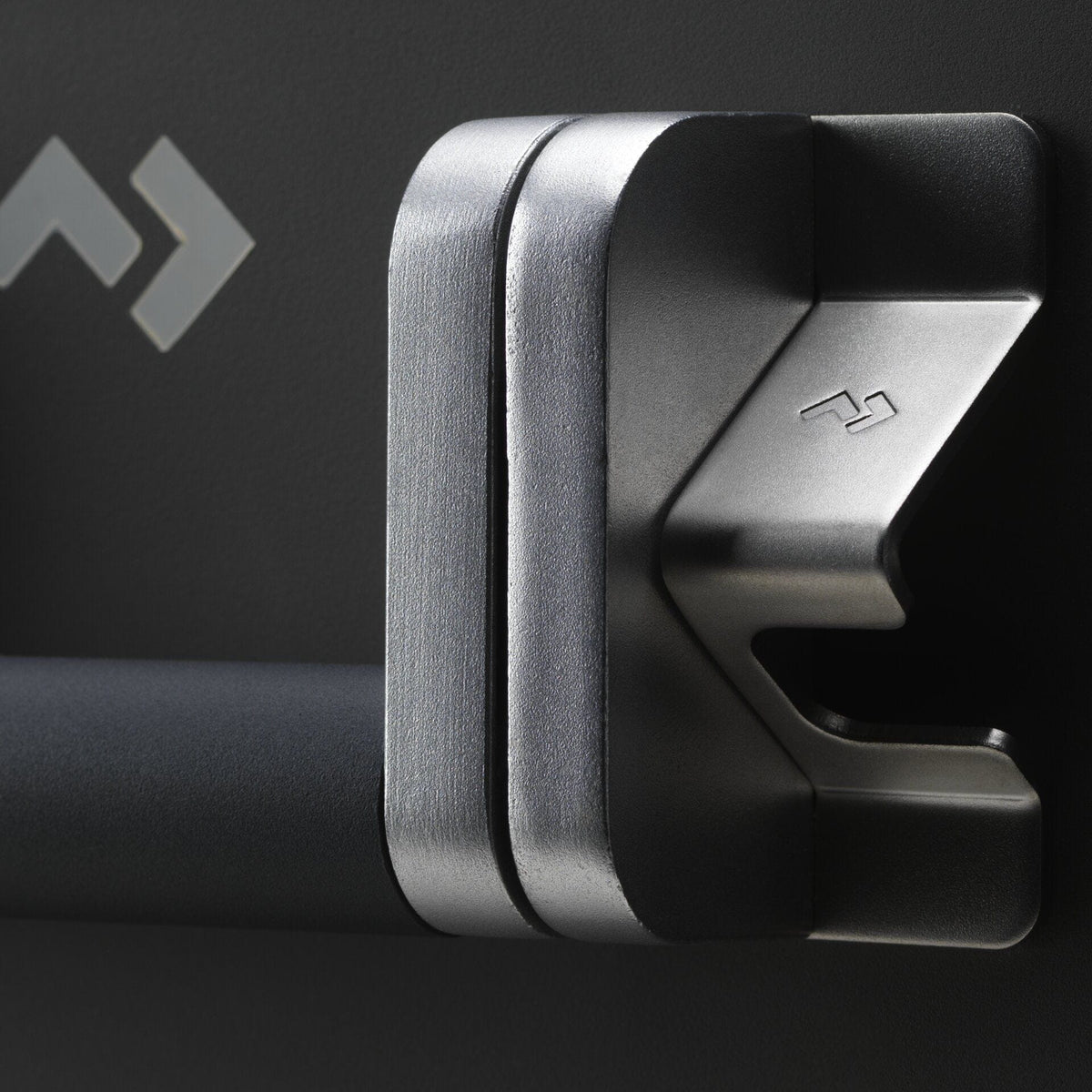

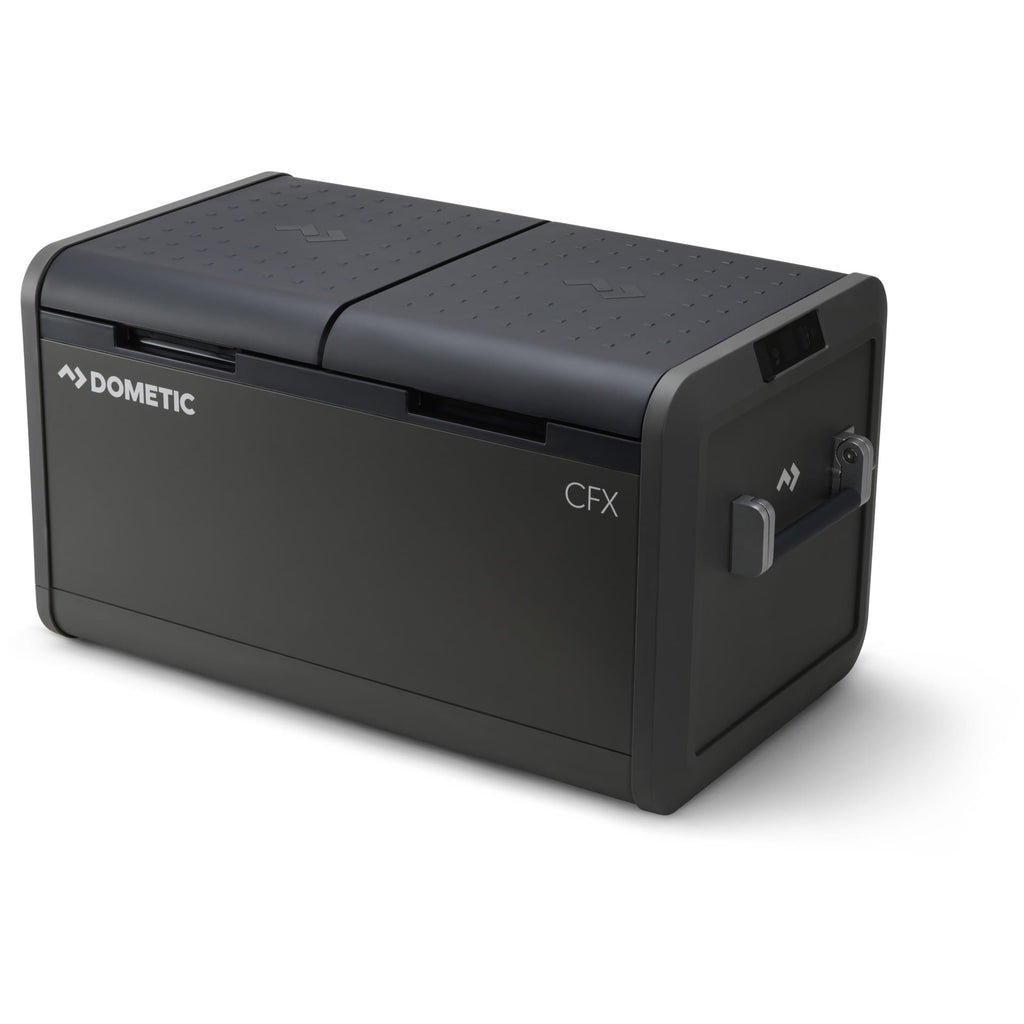

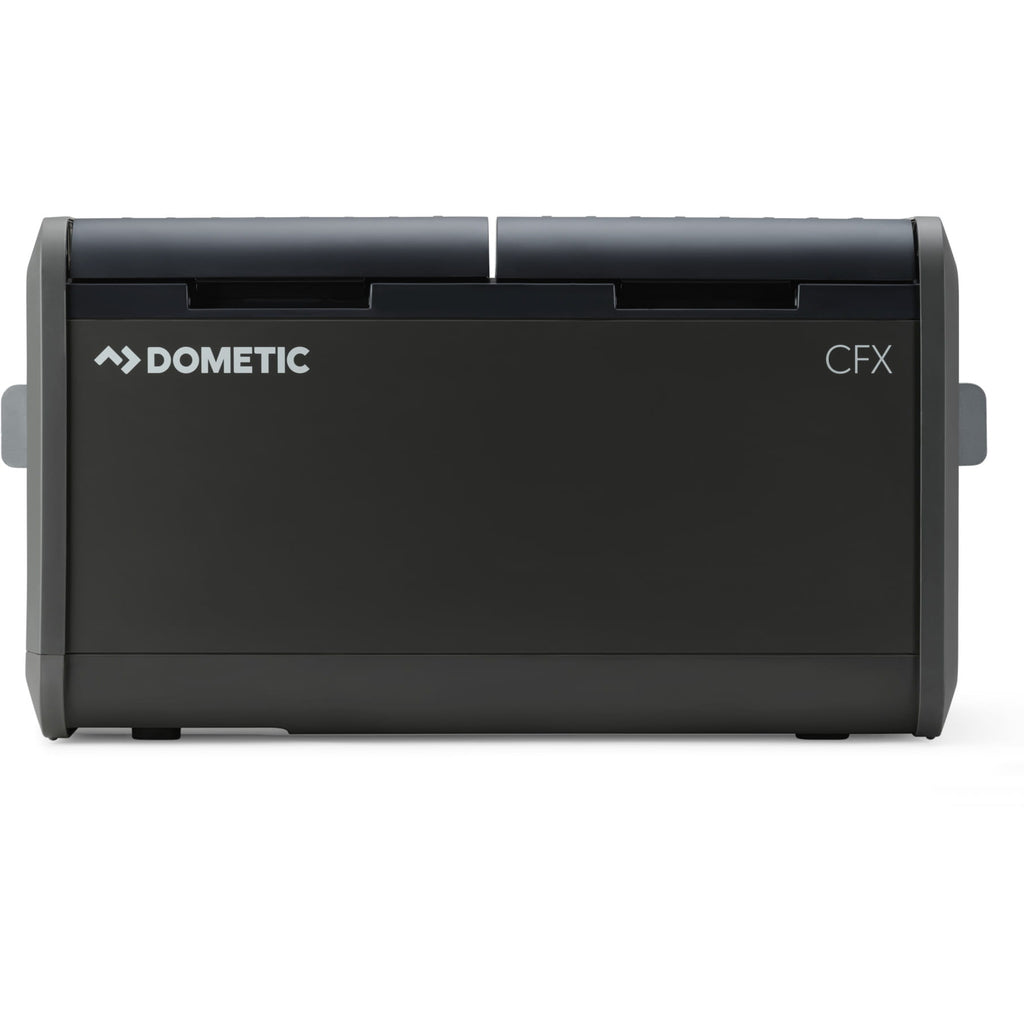

The CFX5 75DZ is a fan favourite. One of our largest compressor coolboxes – great for a van’s portable coolbox or long camping trips. Dual storage compartments with independent temperature control and two cooling zones. Super-efficient Vacuum Insulated Panels deliver outstanding insulation, and maximum energy efficiency. You can control it with our Mobile Cooling smartphone app, a steel frame protects, it’s solar compatible, and – cheers – a bottle opener’s built in.
Features

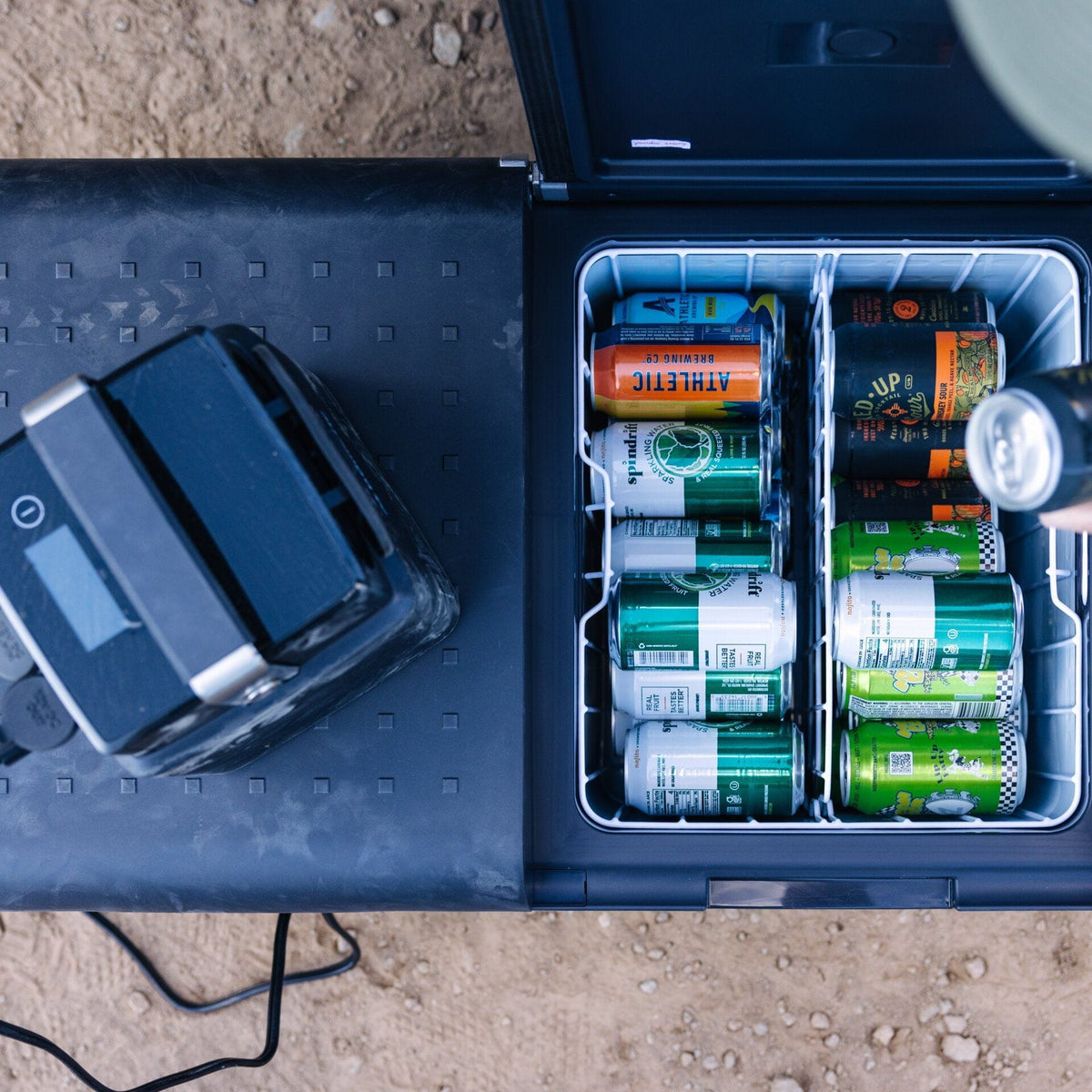

- The 75 l (45/30) capacity holds up to 128 x 330 ml cans & 22 x 1,5 l bottles – a large size for weekend adventures, week-long camping trips, and extended nomadic travel
- Temperature range can be set between +20°C to -22°C
- Control your coolbox, track energy consumption and monitor temperature with the coolboxes Mobile Cooling smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once
- Optimised ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air

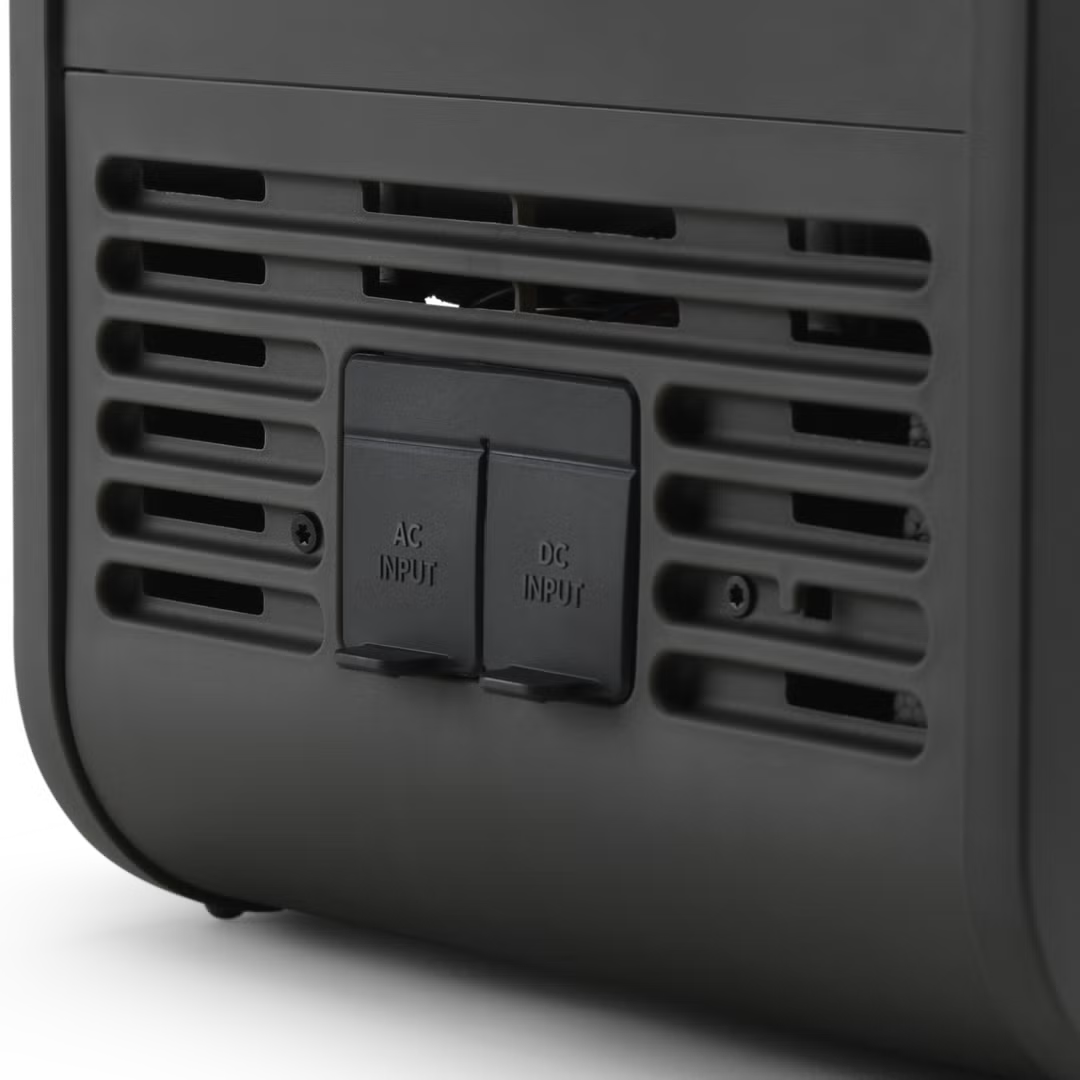

- Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic portable batteries and solar panels
- 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries

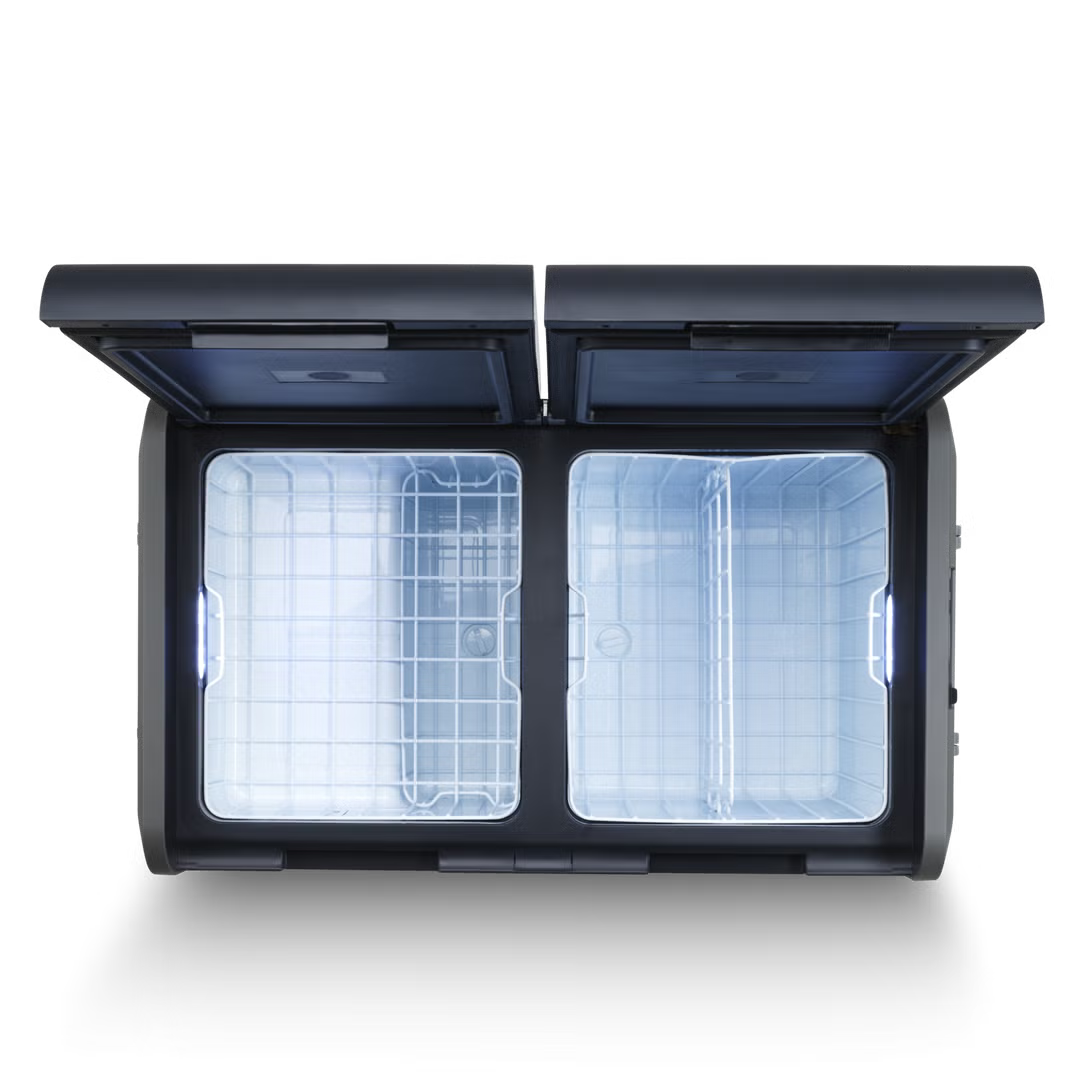

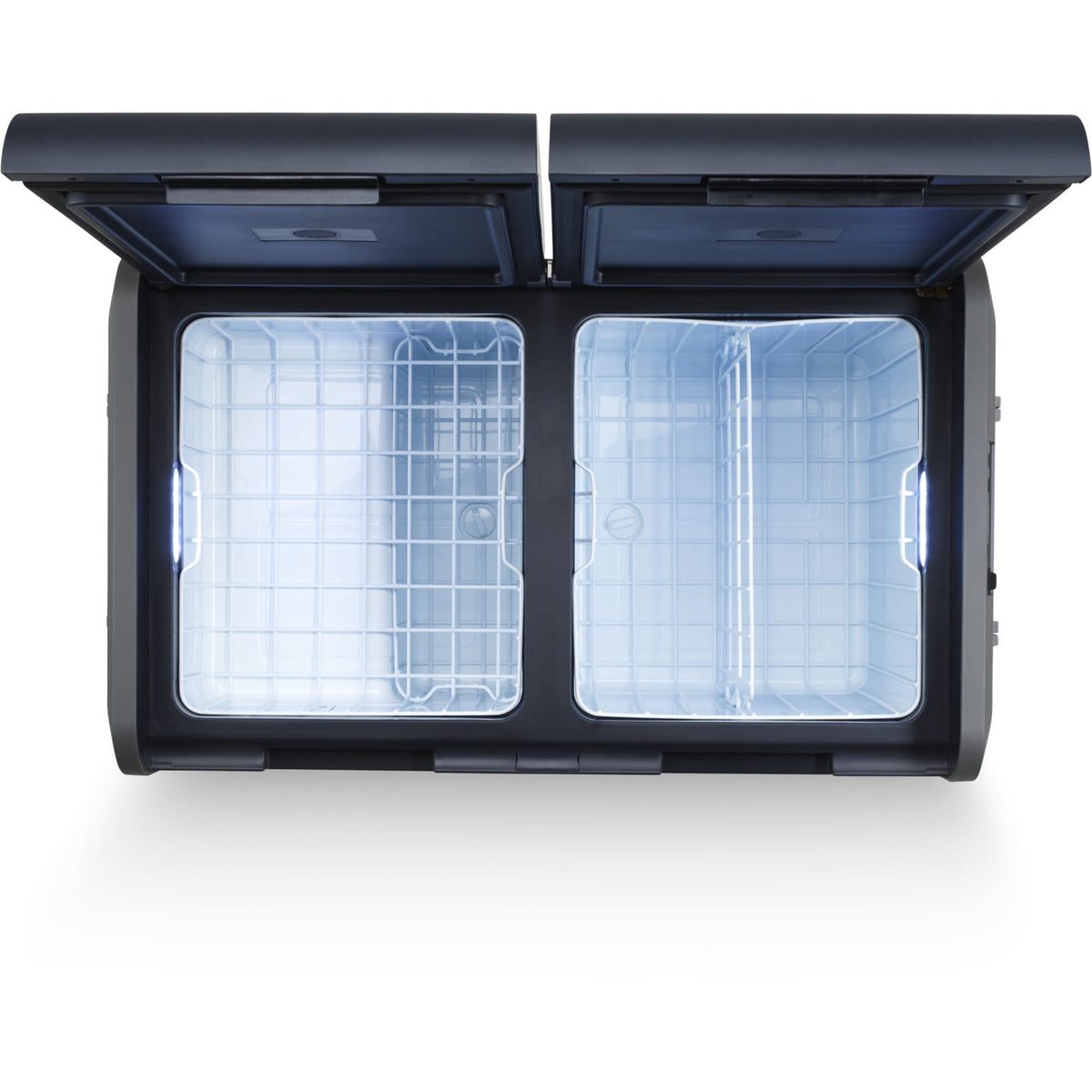

- Two cooling zones allow you to set individual cooling for your food and drinks at the same time
- 3 years warranty
Specifications
General
- What's Included: 1 cooler; 1 manual; 1 DC connection cable, 2 AC connection cable, removeable wire basket
Dimensions
- Dimensions product depth, [mm]: 892.05
- Dimensions product height, [mm]: 471.93
- Dimensions product width, [mm]: 495.05
- Net weight, [kg]: 27.04
- Total volume (IEC 62552-3), [l]: 75
- Amount of cans (12oz/375ml): 121
Electrical
- Input voltage (AC), [V]: 100-240
- Input voltage (DC), [V]: 12/24
- Rated input current (AC), [A]: 1.10A at 100V; 0.47A at 240V
- Rated input current (DC), [A]: 4.6A at 24V, 9.8A at 12V
- Rated input power (AC), [W]: 59
- Input frequency, [Hz]: 50/60
- Battery type: Not Applicable (NA)
- Priority circuit (Integrated): Yes
Performance
- Hermetically Sealed: Yes
- Refrigerant, type: R600a
- Energy Consumption 12VDC (4 °C large zone, -15 °C small zone, 32 °C ambient), [Ah/h]: 2.45
- Energy efficiency class (Regulation (EU) 2019/2016): C
- Climate class (EN 62552): N/T
- Operating temperature min, [°C]: 16
- Operating temperature max, [°C]: 43
- Insulation Type: PU (Polyurethane)
Properties

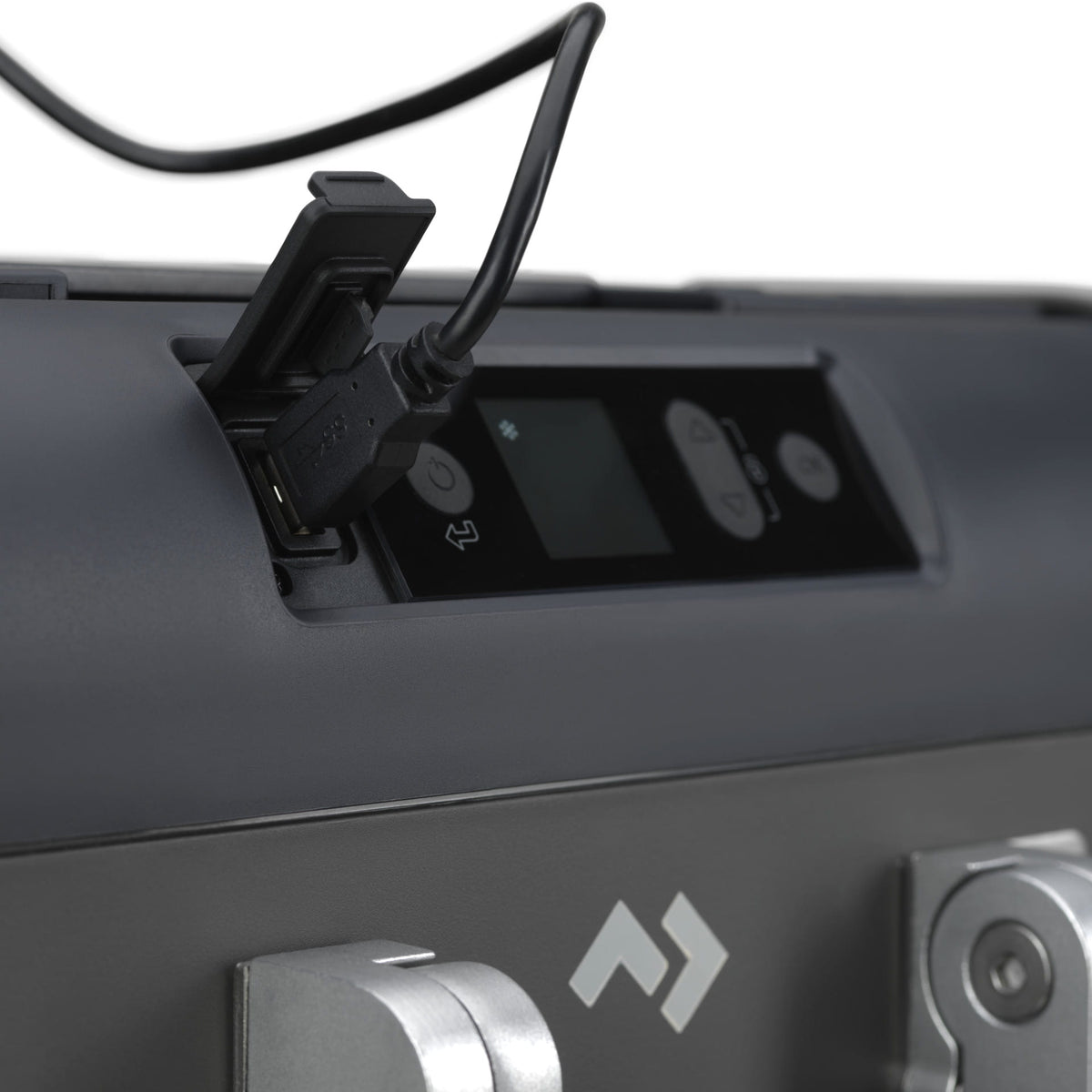

- USB Port: Yes
- Connectivity Type: Bluetooth
- Basket: Yes
- Threaded inserts in base for mounting: M6

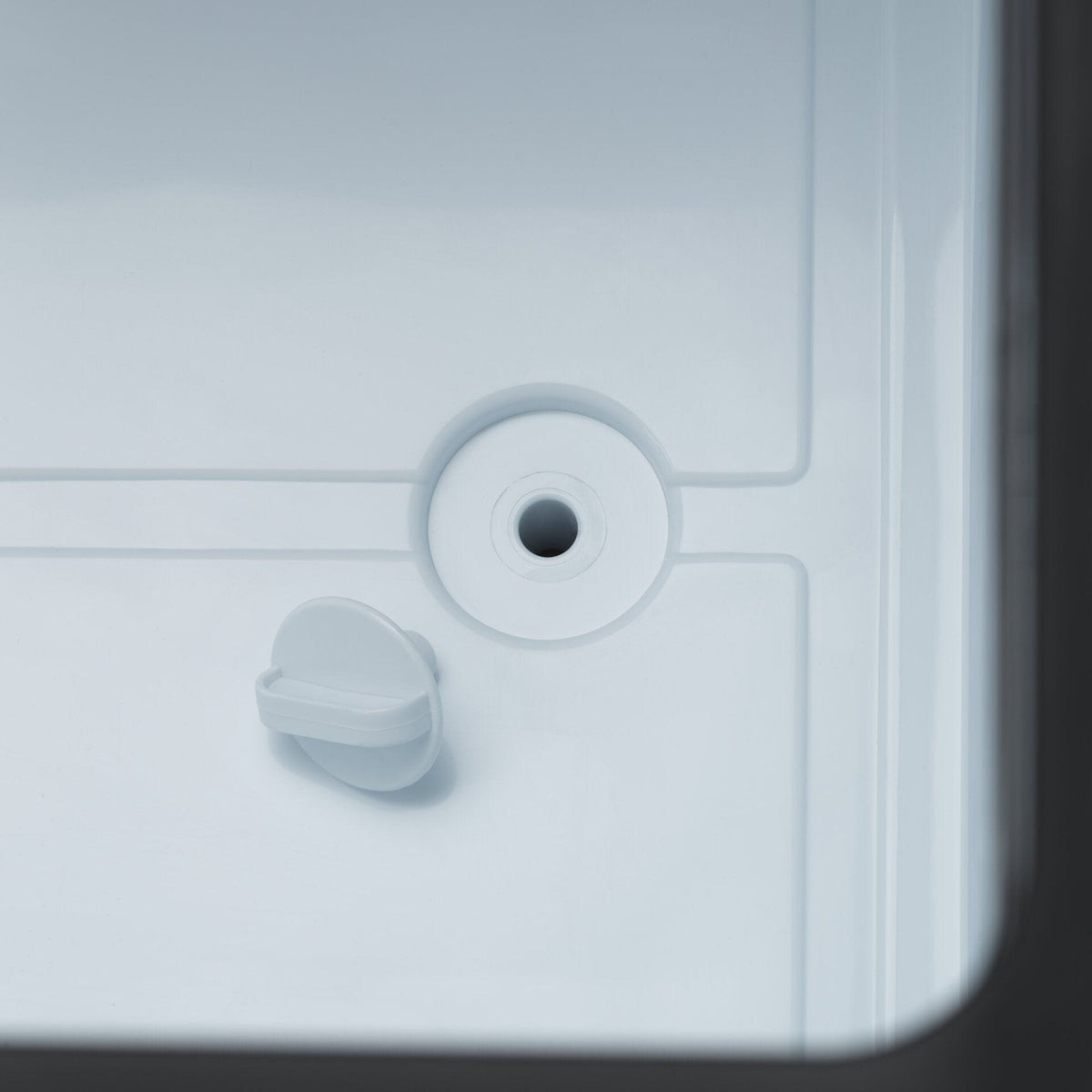

- Drain plug: Yes
- Anti-condensation coil: Yes
- Single or Dual Zone: Dual
- Thermostat control: Electronic Thermostat

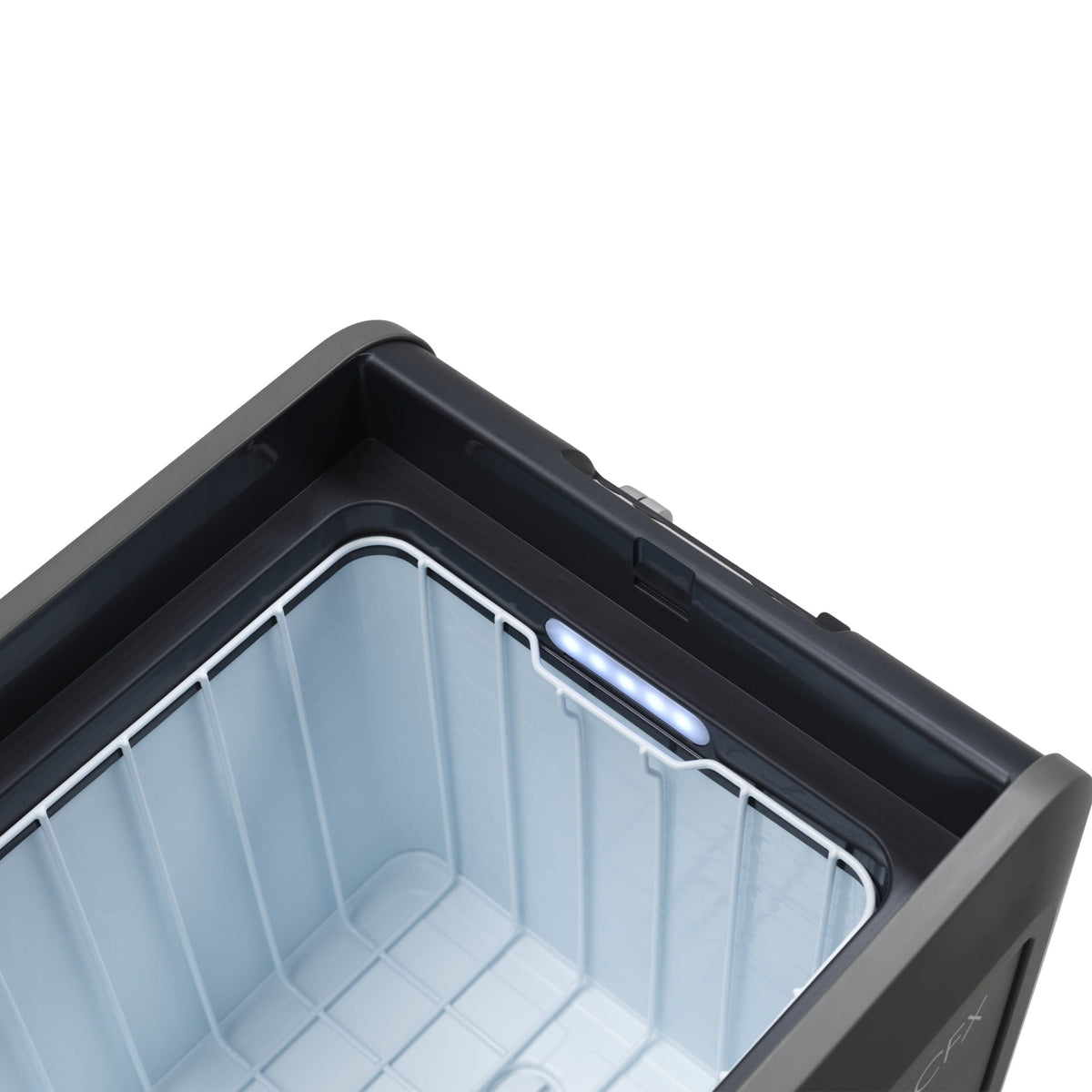

- Interior light: Yes, LED
